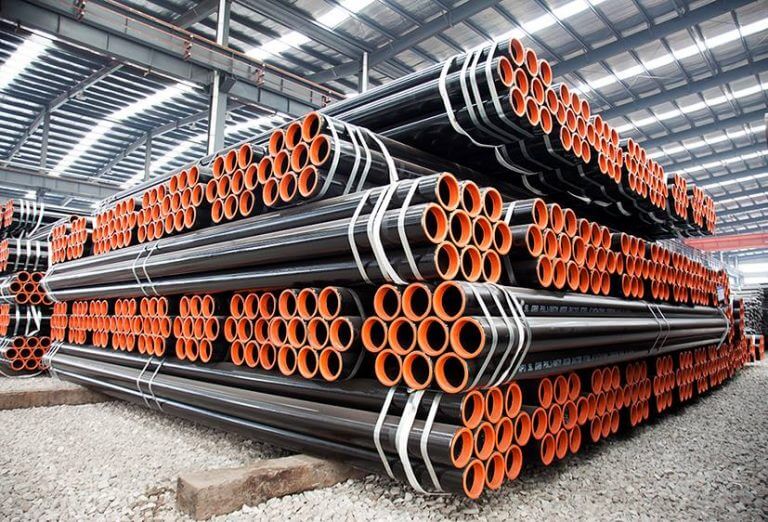

shows-bundles-of-ERW-steel-pipes-AS/NZS-1163-AS/NZS-1074-ISO3183

ISO 3183 Pipeline

ISO 3183, a renowned standard set by the International Standardization Organization, is pivotal for the Petroleum and natural gas industries. It meticulously outlines the requirements for manufacturing two distinct product specification levels, namely PSL 1 and PSL 2, of seamless and welded steel pipes. These pipes are quintessential for pipeline transportation systems in the petroleum and natural gas sectors. Originating from the harmonization of API Spec 5L, 44th edition (2007), and its second edition, ISO 3183 has undergone rigorous refinements, incorporating clarifications and technical requirements, making it a trusted choice for industry professionals. At UNIACERO, we pride ourselves on adhering to these stringent standards, ensuring you receive products of unmatched quality and reliability.

ISO 3183 Specification

Our steel pipes, compliant with ISO 3183, come in both seamless and welded varieties. They are manufactured in two product specification levels: PSL 1 and PSL 2. We offer a diverse range of steel grades, surface coatings, end types, joint methods, and machining services. With our advanced production procedures, you can be assured of precision and excellence in every product.

Production StandardISO 3183
Manufacturing ProcessesERW/HFW (High frequency Electric Resistance Welding)
SSAW (Spirally Submerged Arc Welding)
LSAW (Longitudinal Submerged Arc Welding)
SMLS (Hot Finished / Cold Drawn Seamless)
Outside Diameter10.3mm – 2134mm (1/8″ – 84″)
Wall Thickness1.7mm – 52mm (SCH 5S – SCH 160)
Pipe Length3 – 18 mtrs meters
Steel GradeGr. AX56X90
Gr. BX60X100
X42X65X120
X46X70
X52X80
Corrosion PreventionLacquer, Varnish, Oiling, Galvanizing
FBE, 2LPP, 3LPP, 2LPE, 3LPE
End ProcessesSquare Cut, Bevelling, Threading, Grooving , Shouldering
Further ProcessingWelding, Bending, Hole Drilling, Punching, Swaging, Tapering, Flaring, Expanding

ISO 3183 Dimension Table

schematic-diagram-of-pipe-dimension

At UNIACERO, we understand the importance of accurate dimensions for your projects. Our steel pipes are available in a comprehensive range of sizes, ensuring a perfect fit for your specific requirements. Each dimension is meticulously crafted, adhering to the ISO 3183 standards, guaranteeing optimal performance and safety.

Permissible Specified Outside Diameter and Specified Wall Thickness
Specified Outside Diameter D mm (in.)Specified Wall Thickness t mm (in.)
Special Light Sizes aRegular Sizes
≥ 10.3 (0.405) to < 13.7 (0.540)≥ 1.7 (0.068) to ≤ 2.4 (0.094)
≥ 13.7 (0.540) to < 17.1 (0.675)≥ 2.2 (0.088) to ≤ 3.0 (0.118)
≥ 17.1 (0.675) to < 21.3 (0.840)≥ 2.3 (0.091) to ≤ 3.2 (0.125)
≥ 21.3 (0.840) to < 26.7 (1.050)≥ 2.1 (0.083) to ≤ 7.5 (0.294)
≥ 26.7 (1.050) to < 33.4 (1.315)≥ 2.1 (0.083) to ≤ 7.8 (0.308)
≥ 33.4 (1.315) to < 48.3 (1.900)≥ 2.1 (0.083) to ≤ 10.0 (0.394)
≥ 48.3 (1.900) to < 60.3 (2.375)≥ 2.1 (0.083) to ≤ 12.5 (0.492)
≥ 60.3 (2.375) to < 73.0 (2.875)≥ 2.1 (0.083) to ≤ 3.6 (0.141)> 3.6 (0.141) to ≤ 14.2 (0.559)
≥ 73.0 (2.875) to < 88.9 (3.500)≥ 2.1 (0.083) to ≤ 3.6 (0.141)> 3.6 (0.141) to ≤ 20.0 (0.787)
≥ 88.9 (3.500) to < 101.6 (4.000)≥ 2.1 (0.083) to ≤ 4.0 (0.156)> 4.0 (0.156) to ≤ 22.0 (0.866)
≥ 101.6 (4.000) to < 168.3 (6.625)≥ 2.1 (0.083) to ≤ 4.0 (0.156)> 4.0 (0.156) to ≤ 25.0 (0.984)
≥ 168.3 (6.625) to < 219.1 (8.625)≥ 2.1 (0.083) to ≤ 4.0 (0.156)> 4.0 (0.156) to ≤ 40.0 (1.575)
≥ 219.1 (8.625) to < 273.1 (10.750)≥ 3.2 (0.125) to ≤ 4.0 (0.156)> 4.0 (0.156) to ≤ 40.0 (1.575)
≥ 273.1 (10.750) to < 323.9 (12.750)≥ 3.6 (0.141) to ≤ 5.2 (0.203)> 5.2 (0.203) to ≤ 45.0 (1.771)
≥ 323.9 (12.750) to < 355.6 (14.000)≥ 4.0 (0.156) to ≤ 5.6 (0.219)> 5.6 (0.219) to ≤ 45.0 (1.771)
≥ 355.6 (14.000) to < 457 (18.000)≥ 4.5 (0.177) to ≤ 7.1 (0.281)> 7.1 (0.281) to ≤ 45.0 (1.771)
≥ 457 (18.000) to < 559 (22.000)≥ 4.8 (0.188) to ≤ 7.1 (0.281)> 7.1 (0.281) to ≤ 45.0 (1.771)
≥ 559 (22.000) to < 711 (28.000)≥ 5.6 (0.219) to ≤ 7.1 (0.281)> 7.1 (0.281) to ≤ 45.0 (1.771)
≥ 711 (28.000) to < 864 (34.000)≥ 5.6 (0.219) to ≤ 7.1 (0.281)> 7.1 (0.281) to ≤ 52.0 (2.050)
≥ 864 (34.000) to < 965 (38.000)≥ 5.6 (0.219) to ≤ 52.0 (2.050)
≥ 965 (38.000) to < 1422 (56.000)≥ 6.4 (0.250) to ≤ 52.0 (2.050)
≥ 1422 (56.000) to < 1829 (72.000)≥ 9.5 (0.375) to ≤ 52.0 (2.050)
≥ 1829 (72.000) to < 2134 (84.000)≥ 10.3 (0.406) to ≤ 52.0 (2.050)
NOTE     Standardized values for specified outside diameter and specified wall thickness of pipe are given in ISO 4200 [7] and ASME B36.10M[8]
a    Pipe having the combination of specified outside diameter and specified wall thickness is defined as special light size pipe; other combinations given in this table are defined as regular size pipe.

Chemical Requirements of ISO 3183

Our commitment to quality extends to the chemical composition of our steel pipes. Adhering to ISO 3183, we ensure that each pipe meets the specific chemical requirements, resulting in enhanced durability, resistance, and overall performance. Trust in UNIACERO for steel pipes that stand the test of time.

Chemical Composition For Pipe With t≤25 mm(0.984in)
Steel GradeMass Fraction,based upon heat and product analyses %maximumCarbon Equivalent % max
CSiMnPSVNbTiOtherCEIIWCEPcm
Seamless and welded pipe
L245NE or BNE0.180.41.20.0250.0150.420.25
L290NE or X42NE0.190.41.20.0250.0150.060.050.040.420.25
L360NE or X52NE0.220.451.40.0250.0150.10.050.040.430.25
L415NE or X60NE0.230.451.40.0250.0150.10.050.04As agreedAs agreed
Seamless pipe
L360QE or X52QE0.180.451.50.0250.0150.050.050.040.420.25
L415QE or X60QE0.180.451.70.0250.0150.090.060.050.430.25
L450QE or X65QE0.180.451.70.0250.0150.10.060.070.430.25
L485QE or X70QE0.180.451.80.0250.0150.110.060.070.430.25
L555QE or X80QE0.180.451.90.0250.0150.110.070.07As agreedAs agreed
Welded pipe
L245ME or BME0.180.451.20.0250.0150.050.050.40.25
L290ME or X42ME0.180.451.30.0250.0150.050.050.40.25
L360ME or X52ME0.180.451.40.0250.0150.060.060.050.410.25
L415ME or X60ME0.120.451.60.0250.0150.090.080.070.420.25
L450ME or X65ME0.120.451.60.0250.0150.090.080.070.430.25
L485ME or X70ME0.120.451.70.0250.0150.110.080.070.430.25
L555ME or X80ME0.120.451.80.0250.0150.110.080.070.430.25

Mechanical Requirements of ISO 3183

Mechanical integrity is paramount in the petroleum and natural gas industries. Our steel pipes, compliant with ISO 3183, undergo rigorous testing to meet the necessary mechanical requirements. This ensures that they can withstand the demanding conditions of your projects, offering longevity and reliability.

Steel GradePipe body of SMLS and welded pipesWeld seam of HFW,SAW and COW pipes
Yield Strength Rt0.5 MPa(psi)Tensile Strength Rm MPa(psi)Ratio Rt0.5/RmElongation Af %Tensile Strength Rm MPa(psi)
minmaxminmaxmaxminmin
L245NE or BNE245 (35500)440 (63800)415 (60200)655 (95000)0.822415 (60200)
L245ME or BME245 (35500)440 (63800)415 (60200)655 (95000)0.8522415 (60200)
L290NE or X42NE L290ME or X42ME290 (42100)440 (63800)415 (60200)655 (95000)0.8521415 (60200)
L360NE or X52NE L360ME or X52ME360 (52200)510 (74000)460 (66700)760 (110200)0.8520460 (66700)
L360QE or X52QE360 (52200)510 (74000)460 (66700)760 (110200)0.8820460 (66700)
L415NE or X60NE L415ME or X60ME415 (60200)565 (81900)520 (75400)760 (110200)0.8518520 (75400)
L415QE or X60QE415 (60200)565 (81900)520 (75400)760 (110200)0.8818520 (75400)
L450QE or X65QE450 (65300)570 (82700)535 (77600)760 (110200)0.918535 (77600)
L450ME or X65ME450 (65300)570 (82700)535 (77600)760 (110200)0.8718535 (77600)
L485QE or X70QE L485ME or X70ME485 (70300)605 (92100)570 (82700)760 (110200)0.918570 (82700)
L555QE or X80QE L555ME or X80ME555 (79800)675 (97900)625 (90600)825 (100200)0.918625 (90600)

Steel Grades in ISO 3183

We offer a diverse range of steel grades, including L175, L245, L290, L320, L360, L390, L415, L450, L485, L555, L625, L690, and L830. Each grade is meticulously crafted to meet the unique demands of different applications, ensuring optimal performance and durability.

Our Advantages

  1. Over 25 years of experience in pipeline production and installation.
  2. Comprehensive inspection equipment.
  3. Independent product serial numbers for traceability.
  4. Advanced production equipment – Seamer high-frequency welding machine from the United States.
  5. Complete qualifications – API 5L/API 5CT/FM/UL fire pipe certification, etc.
  6. Wide range of products – independently developed solar torque tubes, highly favored in the European market.
  7. Customers spread across the globe.
  8. Excellent after-sales service and sense of responsibility.

Application Scenarios

Our steel pipes are engineered to withstand high temperatures, corrosive environments, and varying pressures, ensuring reliability and safety in the complex petrochemical processes.

Whether it’s transferring crude oil, natural gas, or chemical intermediates, the robustness and versatility of steel pipes make them indispensable components of the plant’s infrastructure, contributing to efficient production and maintenance of stringent safety standards.
