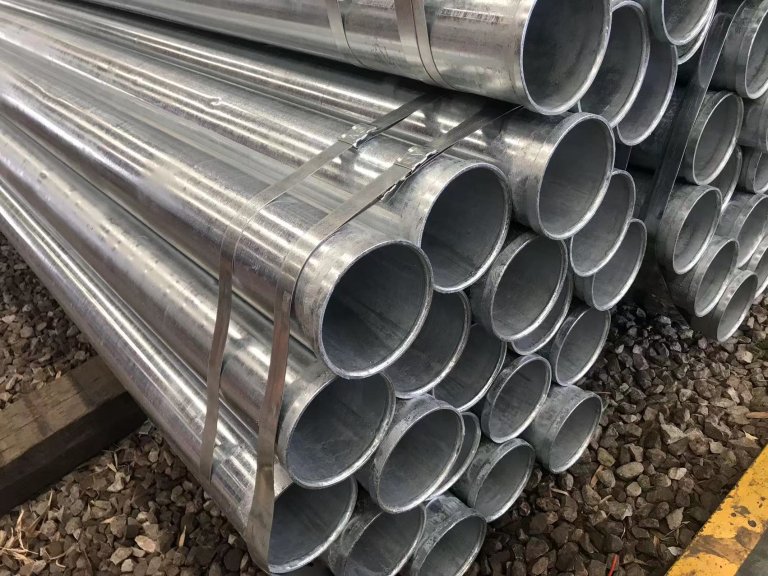

Shouldered Pipe
Overview of Shouldered Pipe
The Shouldered Pipe System stands as a testament to modern engineering and design, offering unparalleled advantages in the realm of piping solutions. When you choose our Shouldered Pipe, you’re not just selecting a pipe; you’re investing in a system that is renowned for its ease of installation and inherent flexibility. This system is adept at accommodating both angular and axial movements within its jointing mechanism, ensuring a seamless flow and reduced chances of leakage. Furthermore, its application spans across various industries, making it a versatile choice for diverse projects. One of the standout advantages of our Shouldered Pipe is its robustness and durability, thanks to the meticulous coating process it undergoes. By opting for our product, you’re ensuring a long-lasting, efficient, and reliable solution for your piping needs.
Available Sizes of Shouldered Pipe
Our Shouldered Pipe range is extensive, ensuring that we cater to the varied requirements of our esteemed clientele. Sizes start from a compact 50NB, perfect for smaller applications, and go up to a substantial 300NB, designed for larger, more demanding projects. But it’s not just about the diameter; the wall thickness of our pipes is meticulously calibrated to ensure optimal strength and durability without compromising on flexibility. Each size is crafted with precision, ensuring that the pipe you choose fits seamlessly into your project. Remember, the right size is crucial not just for fit but for the efficient flow and longevity of the system.
| SHOULDERED PIPE DIMENSIONS | |||||
|---|---|---|---|---|---|
| O.D. | NPS | “DS” | Tolerance +/- | “L” | |
| mm | mm | mm | mm | mm | mm |
| 60.3 | 50 | 66.5 | 0.8 | 0.8 | 16 |
| 88.9 | 80 | 97 | 0.8 | 0.8 | 16 |
| 114.3 | 100 | 122 | 0.8 | 0.8 | 17.5 |
| 165.1 | 150 | 174.5 | 0.8 | 0.8 | 17.5 |
| 168.3 | 150 | 178 | 0.8 | 0.8 | 17.5 |
| 219.1 | 200 | 232 | 0.8 | 1.4 | 20.5 |
| O.D. | NPS | Ring I.D. | Ring O.D. | Tolerance +/- | Ring Width | |
|---|---|---|---|---|---|---|
| mm | DN | mm | mm | mm | mm | Width |
| 60.3 | 50 | 60.3 | 66.5 | 0.8 | 0.8 | 16 |
| 88.9 | 80 | 88.9 | 97 | 0.8 | 0.8 | 16 |
| 114.3 | 100 | 114.3 | 122 | 0.8 | 0.8 | 17.5 |
| 139.7 | 125 | 139.7 | 149 | 0.8 | 0.8 | 17.5 |
| 165.1 | 150 | 165.1 | 174.5 | 0.8 | 0.8 | 17.5 |
| 168.3 | 150 | 168.3 | 178 | 0.8 | 0.8 | 17.5 |
| 219.1 | 200 | 219.1 | 232 | 0.8 | 1.4 | 20.5 |
| 273 | 250 | 273 | 286 | 0.8 | 1.9 | 20.5 |
| 323.9 | 300 | 323.9 | 336.5 | 0.8 | 2.4 | 20.5 |
| 355.6 | 350 | 355.6 | 368.5 | 0.8 | 2.4 | 24 |
| 406.4 | 400 | 406.4 | 419 | 0.8 | 2.4 | 25.5 |
| 457 | 450 | 457 | 470 | 0.8 | 2.4 | 25.5 |
How to Select the Right Shouldered Pipe
Choosing the right Shouldered Pipe is pivotal to the success of your project. Start by understanding the specific requirements of your application. Consider factors like the volume of flow, the type of liquid being transported, and the environmental conditions. Next, factor in the size. While it might be tempting to opt for a larger diameter for increased flow, remember that the right fit ensures longevity and reduced maintenance. The coating is another crucial aspect. Our hot-dip galvanised coating ensures protection against corrosion, enhancing the lifespan of the pipe. Lastly, always consider the flexibility and movement requirements of your system. Our shouldered pipe is designed to accommodate certain angular and axial movements, ensuring a seamless and efficient flow. With UNIACERO, you’re not just buying a product; you’re investing in a partnership that prioritizes your success.
